3D Printed Intake Manifolds: Flow-Led Geometry in Carbon Fibre Nylon
Stop designing induction parts for the mould. How 3D printed intake manifolds in carbon fibre reinforced nylon deliver flow-led geometry, single-piece plenums to 900 mm and pressure-tested sealing - and where casting still wins.
For decades, intake manifolds were designed around what casting cores and mould pulls would allow — not around what the airflow actually wanted. Runner geometry, plenum shape, packaging: all compromised for manufacturability.
Industrial FDM removes that constraint. We build induction parts that prioritise flow, packaging, weight and iteration speed — particularly where volumes are low, development is moving quickly, or tooling lead times are killing the programme.
This is engineered polymer hardware, not prototype theatre.
Why 3D print an intake manifold?
Geometry freedom where it actually matters
FDM makes shapes manufacturable that are painful, expensive or simply unrealistic to cast at low volume:
Tapered runners to manage velocity and distribution
Plenums shaped for cylinder-to-cylinder balance rather than for tool release
Integrated bosses and mounting features for MAP and IAT sensors, vacuum take-offs and brackets
Packaging-led geometry routed around turbos, charge pipes, heat shields and ancillaries
You stop designing for draft angles and start designing for performance.

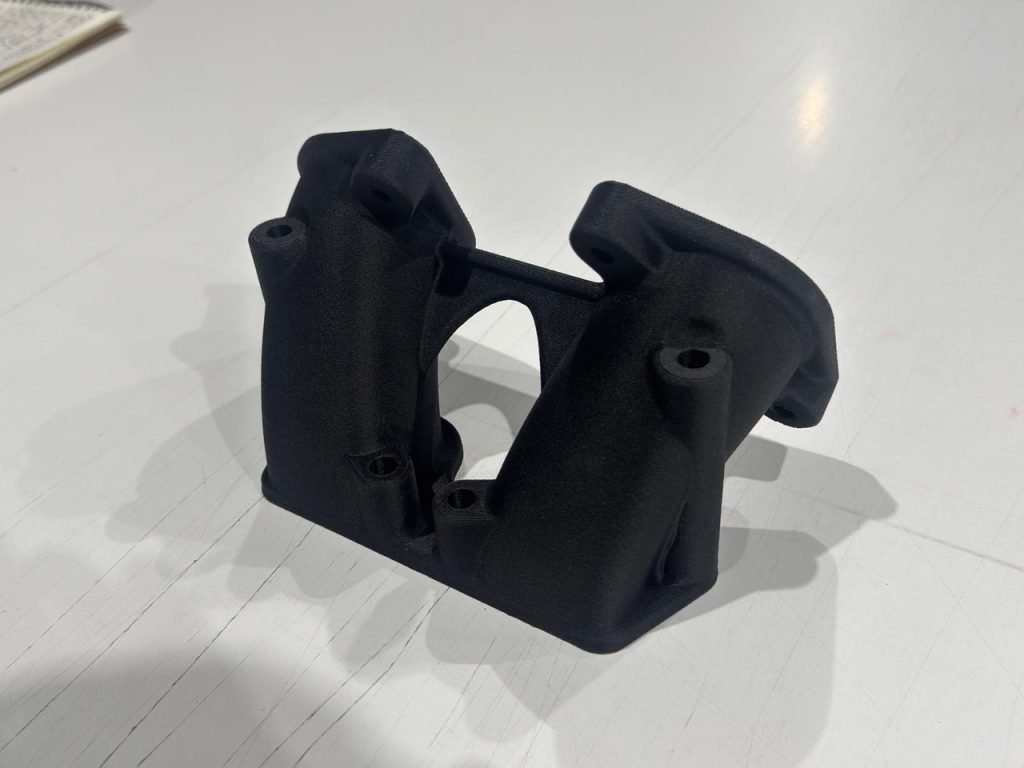

Runner sets printed in carbon fibre reinforced nylon. Tapers and transitions set by flow requirements rather than by what a core box would release.
CAD to dyno and back, without tooling pain
Traditional manufacturing punishes iteration. Additive encourages it. Change runner length, taper, throttle entry angle or plenum volume in CAD, print the next revision, test again — without restarting a tooling programme. That feedback loop is how you land the powerband where you want it rather than where the tool allowed.
Large format means fewer seams
Most printed manifolds fail in service because they were chopped into sections, bonded together, then asked to survive heat, vibration and boost. Every bond line is a leak path and a failure point.
Our FDM build envelope runs to 500 × 500 × 900 mm, which allows larger single-piece plenums, longer runners without splitting, and fewer joints overall. Where a part genuinely will not fit, we will tell you at quote rather than splitting it quietly.
Material selection: PA12-CF, PA6-CF, PPA-CF and PPS-CF
Material selection is not a marketing line. It decides whether the part survives.
The stable all-rounder. Strong stiffness-to-weight, low moisture pickup and good dimensional stability — a sound baseline where the under-bonnet environment is demanding but not extreme.
High-performance polyamide for hotter, harsher duty cycles where standard nylons are marginal. Note the reduced build envelope on this grade — 340 × 320 × 340 mm.
PPS-CF
Carbon fibre reinforced polyphenylene sulphide — the highest thermal and chemical resistance we run for induction work, for duty cycles where even PPA-CF is marginal. Quote-only: not available through the standard instant quote, so talk to an engineer and we will price it against your duty cycle.
Every figure on the linked pages is published against its ISO test method, so you can compare like with like rather than taking a headline number on trust. Full data sits on the material datasheets.
The caveat that matters: temperature and chemical performance depend on duty cycle — heat soak versus airflow cooling, boost and vacuum, clamp loads, and fuel or fluid exposure. Ethanol blends in particular change the answer. We specify the polymer to the job.
Dual-port induction component. The gain is in the path the air takes, not in the surface it takes it over.
Flow: the win is inside
FDM is not mirror-smooth internally straight off the machine, and it is worth being straight about that. The win is that you can design cleaner paths, better transitions and better distribution — then engineer the sealing and finish to match the requirement.
Controlled runner transitions and radii
Packaging-led plenums shaped for distribution
Integrated features that remove brackets, weld-ons and joints from the assembly
Airtight and boost-ready
An intake manifold is a pressure part, not a decorative print, so it gets treated as engineered hardware:
Sealing and infiltration where micro-porosity needs addressing
Coatings selected for the heat and chemical environment
CNC facing for gasket-true mounting flanges
Threaded inserts where clamp load and serviceability demand metal threads
Pressure testing
On applicable builds we validate sealing integrity to +2 bar positive pressure and −1 bar vacuum. That test is the line between a printed part and a production-ready one.
Where FDM induction parts win
Motorsport and track programmes
Prototype and development engines
Low-volume hypercar and specialist builds
Restomods, where tooling makes no commercial sense
Bridge production while tooling is cut or lead times slip
Where it is the wrong call
High annual volumes. At tens of thousands of units a year, tooling still wins on unit cost. Additive is the answer below the break-even, not above it — see when 3D printing beats injection moulding.
Sustained temperatures beyond polymer limits. Close-coupled to a turbo or exhaust, no polymer is the right answer. Check the duty cycle before the material.
Mirror-smooth internal surfaces straight off the machine. If the specification demands a cast-and-machined internal finish, say so early and we will price the finishing route honestly.
Homologated parts requiring a specified material. Where a series regulation or type approval names the material, an additive equivalent may not satisfy it.
Airbox assemblies in batch, with seals and mounting hardware fitted. Low volume, but manufactured rather than fabricated.
Talk to us about your induction programme
Send the CAD and the duty cycle — boost, heat soak, fuel, clamp loads — and we will tell you which grade we would run it in and why, with a free design review on every quote. Upload through the instant quote, see how this works across automotive production, or talk to an engineer on 024 77360 144.
Frequently asked questions
Can you 3D print a working intake manifold?
Yes, and they run in motorsport and low-volume production programmes. The qualifier is that a manifold is a pressure part, so it needs to be treated as engineered hardware rather than a print — sealing or infiltration where micro-porosity requires it, CNC-faced flanges for a gasket-true seal, metal threaded inserts where clamp load demands them, and pressure testing before it ships.
What material is best for a 3D printed intake manifold?
It depends on the thermal duty. PA12-CF is the stable all-rounder with low moisture pickup. PA6-CF gives more stiffness and temperature capability, to 215 °C. PPA-CF handles hotter, harsher duty cycles where standard nylons are marginal. For genuinely severe thermal and chemical duty we also run PPS-CF on a quote-only basis — ask us. Send the duty cycle rather than the part and the answer usually becomes obvious.
Will a 3D printed manifold hold boost?
On applicable builds we validate to +2 bar positive pressure and −1 bar vacuum before the part leaves. Holding boost is a function of wall design, sealing treatment and flange quality rather than of the printing itself — which is why the finishing and validation route is specified alongside the part, not after it.
How large a manifold can you print in one piece?
Up to 500 × 500 × 900 mm on our large-format FDM machines, which covers most single-piece plenums and full-length runner sets. Note that PPA-CF runs in a reduced envelope of 340 × 320 × 340 mm. Printing whole matters here more than on most parts: every bond line in a pressure component is a potential leak path.
Are 3D printed manifolds smooth inside?
Not mirror-smooth straight off the machine, and we would rather say so. What additive gives you is control over the geometry — runner transitions, radii, plenum shape and distribution — which is where the meaningful flow gains sit. Where internal finish genuinely matters, the finishing route is priced with the part.
Is 3D printing cheaper than casting a manifold?
Below the tooling break-even, comfortably. There is no pattern, no core box and no tool to pay for, so a run of ten costs what a run of ten should. Above it, casting wins on unit cost and we will say so. For development programmes, restomods and motorsport, the volumes almost never justify a tool.
Can you 3D print other induction parts?
Yes — airboxes, charge pipes, throttle bodies, ducting, plenum chambers and air management components across the induction system, including complete assemblies with seals and mounting hardware fitted. Anything where packaging is tight and volumes are low is a natural fit.
