Production MJF and FDM: Not Just for Prototypes Anymore
The view that FDM and MJF are prototyping technologies is a decade out of date. What production-grade additive manufacturing actually looks like in the UK - materials, process control, quality infrastructure, and the tooling break-even that decides when it is the right call.
FDM has a reputation problem, and so does MJF. Ask most engineers what FDM is for and they will say prototypes. Ask about MJF and you get something similar — short-run demonstrators, the odd functional check piece, a step up but still not real manufacturing.
That view was reasonable a decade ago. It is now out of date, and the manufacturers who have not revisited it are leaving capability on the table.
Production-grade FDM and MJF are different animals from the desktop machines and prototype bureaus that shaped most people's mental model. Different materials, different process control, different quality infrastructure, different outcomes. We have run both as production processes for industrial customers since 2017. Here is what that actually looks like.

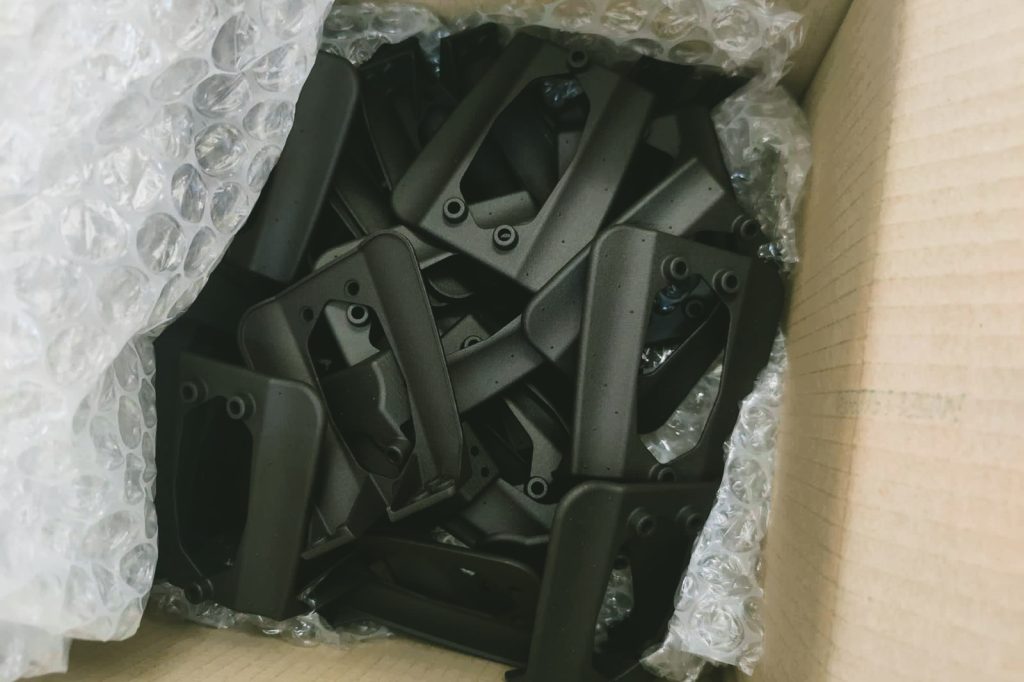

End-use parts, deliberately specified in the right material for the application — not prototypes pressed into service.
What changed for FDM and MJF
Materials
Production FDM now means carbon and glass fibre reinforced nylons and high-temperature engineering grades — PA6-CF, PA12-CF, PA6-GF, PPA-CF, PET-CF and flame-retardant PC-FR among the twenty-four grades we hold. MJF runs PA 12 and bio-based PA 11 Gen2, tough and isotropic straight out of the build chamber. These are engineering inputs, not display materials.
Process control
The warpage, delamination and tolerance drift that characterised early FDM are engineering problems, and production systems have largely solved them. Thermal management, layer adhesion and dimensional stability are all controllable at scale. Powder-bed fusion sidesteps the question differently, delivering consistent properties in every direction — a real difference from FDM that matters on load-bearing parts.
Part size
Large-format FDM takes the technology past small components. Panels, housings and frames up to 900 mm are viable in a single build, with no joints and no assembly. MJF works the other end of the problem: nesting hundreds of small to medium parts per build, which is what makes serial production economic at volumes that used to sit behind tooling.
Quality infrastructure
ISO 9001 certification, material traceability, first article inspection, documented process parameters, PPAP level 1 to 4 approval. The frameworks production customers actually require are standard at any serious production bureau — and are the clearest dividing line between a print shop and a manufacturer.
Fibre-reinforced FDM components. Stiffness-to-weight that competes with aluminium in the right application.
Where production additive genuinely wins
Application
Why additive fits
Low to medium volume end-use parts
No tooling cost to amortise. Below the tooling break-even, additive is frequently the cheapest route, not a compromise.
Complex internal geometry
Undercuts, internal channels and consolidated features that a mould struggles with — manifolds, ducting, integrated housings.
High-mix, low-volume programmes
Many variants at low volume each. A separate tool per variant makes no sense; changing the file costs nothing.
Live design iteration
When a design moves on a running programme, additive responds in days. No retooling, no minimum order commitment.
Replacement and obsolete parts
Where the original is gone and retooling is not viable — a properly specified part, not a substitute. See replacing discontinued components.
The business case in plain terms
Indicative rather than quoted — tooling costs vary enormously with part size and complexity — but the shape of the comparison holds.
Consideration
Injection moulding
Production FDM / MJF
Tooling cost
Substantial upfront investment
None
Time to first part
Weeks to months, tool dependent
1–3 days express, 5–7 standard
Design changes
Tool modification or replacement
Change the file
Minimum order
Volume commitment to justify the tool
One part
Variants
New tool per variant
No additional cost
Unit cost at high volume
Falls as the tool amortises
Flat
Below the tooling break-even point, production FDM and MJF are not a compromise — they are the economically correct answer. The break-even moves further in their favour as complexity rises, variant count rises, and programme volumes become less predictable. Above it, moulding wins, and we will tell you so.
MJF nesting. Packing the build volume is what makes powder-bed economic at production quantities.
Where production additive is still the wrong call
High, stable annual volumes. Past the break-even the tool pays for itself and moulding takes it on unit cost.
FDM parts loaded across the layers. FDM is anisotropic. Where a part sees significant load in Z and orientation cannot be controlled, powder-bed or a different material is the honest answer.
Specifications naming a moulding grade. Compliance or customer approval calling out a specific moulded material may not accept an additive equivalent, however close the data reads.
Cosmetic show surfaces straight off the machine. Additive parts need finishing to reach a moulded appearance. Budget for it rather than being surprised by it.
Produced whole rather than split and bonded — fewer joints, no bond line to qualify, no assembly step.
Why RYSE 3D for production FDM and MJF in the UK
There is a meaningful difference between a generalist print shop and a production bureau, and it is not a marketing distinction. It shows up in part consistency across a run, and in the documentation that arrives with the order.
More than 2.5 million polymer components in service, across 25 vehicle programmes
Running production FDM since 2017 — 100+ printers across an 8,000 sq ft facility
ISO 9001 certified quality management, PPAP level 1 to 4 approved processes
King's Awards for Enterprise — Innovation 2024, International Trade 2026
Material traceability from input batch to finished part, with first article inspection against your tolerances
Parts that many UK bureaus would split and bond, we produce whole at up to 900 mm — fewer failure points, lower assembly cost, shorter lead time. See where that lands in automotive, machine build and robotics, or across all industries.
Get a price without a sales call
Upload your CAD through the instant quote — up to 100,000 parts, priced in seconds, with a free design-for-additive review on every quote. Or talk to an engineer on 024 77360 144.
Frequently asked questions
Is FDM 3D printing suitable for end-use production parts?
Yes, when the material and the process control suit the application. RYSE 3D has run FDM as a production process since 2017, and more than 2.5 million polymer components manufactured at our facility are in service across 25 vehicle programmes. The qualifier matters though: an FDM part is anisotropic, so build orientation is a design decision rather than a detail, and parts loaded across the layers behave differently from parts loaded along them.
What is the difference between FDM and MJF?
FDM extrudes material layer by layer, which suits large parts and fibre-reinforced or high-temperature grades. MJF is a powder-bed process that fuses nylon with jetted agents and infrared heat, producing isotropic parts with a fine, even surface and excellent nesting economics on small to medium components. The short version: FDM for big and hot, MJF for volume and consistency.
At what volume does 3D printing beat injection moulding?
There is no universal number, because it moves with part complexity, variant count and how certain the volume is. What is reliable is the shape of the curve: additive carries no tooling cost and a flat unit price, moulding carries a large upfront tooling cost and a low unit price. The crossover sits wherever those two lines meet for your specific part. Our instant quote prices up to 100,000 parts, which makes your side of the calculation quick to establish.
What is the minimum order quantity for production 3D printing?
One. There is no minimum order and no tooling charge, and single parts run through the same quality system as multi-thousand part production runs. That is the point of a tooling-free process — a run of five is not a special case.
How fast can production parts be manufactured?
SLS, FDM and SLA run to 1 to 3 working days on express, or 5 to 7 working days as standard. MJF runs to 5 to 7 working days. Those are production lead times rather than prototype turnarounds, and they hold because the process is documented and repeatable rather than improvised per job. See pricing and lead times.
Are MJF parts as strong in every direction?
MJF and SLS parts are effectively isotropic — mechanical properties are consistent regardless of orientation in the build, which is what makes powder-bed processes straightforward to design for. FDM is not: layer adhesion means Z-axis properties differ from XY, so orientation has to be specified. Published figures for both sit on the material datasheets with the ISO test method against every value.
Can you 3D print large parts in one piece?
Up to 900 mm on our large-format FDM machines, which covers a great many parts that would otherwise be split and bonded. A part produced whole has fewer joints to fail, no bond line to qualify, and no assembly step — usually cheaper as well as better. Beyond that envelope, splitting becomes the honest answer and we will say so at quote.
