High-Performance FDM: Strong, Lightweight Production Parts
Industrial FDM is not desktop FDM. Carbon and glass fibre reinforced nylons, 215 degrees C heat capability and 900 mm single-piece parts - what high-performance FDM replaces, where it beats machining and moulding, and where it is the wrong answer.
FDM spent years being treated as a drafting tool — useful for checking form and fit, rarely trusted with the final job. That reputation has not kept up with the technology.
Industrial systems, fibre-reinforced polymers and large-format platforms have made high-performance FDM one of the more capable and cost-effective routes to functional, load-bearing components. This is what it can and cannot do.

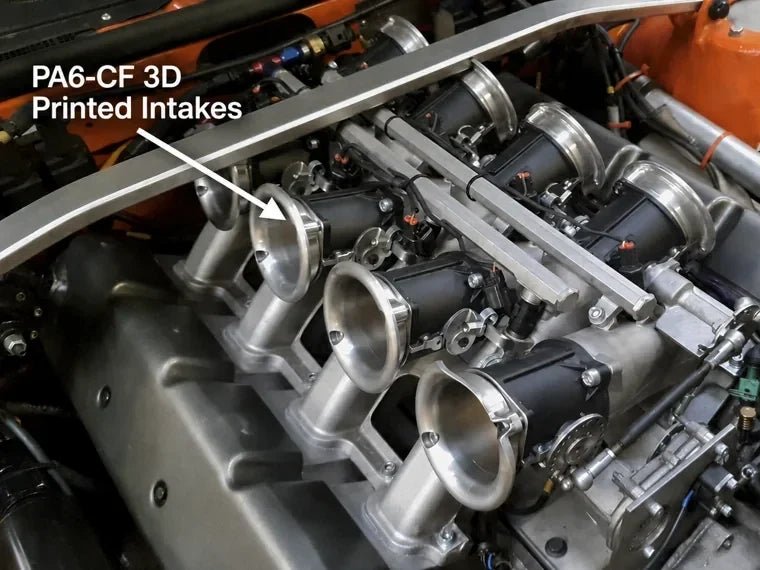

PA6-CF intake bodies, installed on individual throttle bodies and in service. Engine bay heat, vibration and a part that has to seal.
What separates industrial FDM from desktop FDM
The gap is wider than most people assume, and it is not simply machine cost.
Desktop printers run commodity materials — PLA, basic ABS — in open frames, and they struggle with layer adhesion and thermal stability as a result. Industrial FDM runs engineering polymers in heated chambers with controlled extrusion and documented parameters. Same basic principle, entirely different output.
Stiffness-to-weight that competes with aluminium in the right application — PA6-CF runs an 8,636 MPa modulus at 1.17 g/cm³, less than half the density of aluminium
Heat capability to 215 °C heat deflection, and 205 °C even at 1.8 MPa under load
Large continuous geometry — up to 500 × 500 × 900 mm in a single piece, with no bonding or assembly
Repeatability under ISO 9001 certified process control, so the hundredth part matches the first
Flame-retardant PC/ABS blend, V-0 rated at 1.5 mm on the base resin.
Every figure sits against its ISO test method on the material datasheets, with dry XY, dry Z and wet values published separately — so you can see what a grade does in real service rather than in a headline. Where a flexible part is needed, SLS TPU 90A and MJF TPU 01 cover seals and dampers better than FDM does.
Race car airbox, fitted and running. Consolidated geometry that would need several parts and a tool to produce conventionally.
Where high-performance FDM earns its place
Production-grade strength
Fibre-reinforced FDM delivers high tensile strength and rigidity — mounting brackets and housings that carry real load in industrial machinery. The caveat that always applies: FDM is anisotropic. PA6-CF runs 109 MPa in the print plane against 71 MPa through-layer, so orientation is a design decision, and we set load paths at quote rather than leaving it to the slicer.
Large format
Powder-bed and resin processes are bounded by comparatively small build volumes. FDM at 900 mm produces single-piece components — large ducts, panels, housings — that would otherwise need tooling or multi-part assembly. More on that in when the part is too big for everyone else.
No tooling
For low to medium volumes, FDM removes the tooling line from the budget entirely. You pay for the part and nothing else, which is the whole argument in 3D printing as an injection moulding alternative.
Lightweighting
In motorsport every gram is argued over. Carbon fibre polymers replace machined aluminium in applications where stiffness rather than absolute strength is the requirement, and sparse infill lets you hollow the inside of a part while keeping the outer section — something solid machining cannot do.
Iteration speed
A fitment problem found on Tuesday can be a revised part on the bed the same afternoon. Over a development programme that compounds into weeks.
Water jet exit cover on a submersible drone. Stiff, light, and shaped around the flow rather than around a mould.
Induction components and ducting that resist engine bay heat, lightweight mounts and brackets replacing metal, and interior trim for low-volume vehicles.
Stiff, lightweight airframe components, mounts and covers in carbon fibre reinforced nylon.
What FDM typically replaces
Machined engineering plastics. For complex shapes, printing is often faster and wastes far less material than cutting the same part from billet — see additive against machining.
Composite layups. No moulds, no manual labour, and a repeatable digital workflow instead.
Sheet metal fabrication. For brackets and housings, printed carbon fibre nylon offers geometry that bending and welding cannot reach.
Injection moulding at low volume. Below the tooling break-even, printing is almost always cheaper because there is no tool to amortise.
Where FDM is the wrong answer
Loads across the layers. FDM is anisotropic. Where a part sees significant Z-axis load and orientation cannot be controlled, powder-bed SLS or MJF gives you isotropic properties instead.
Humid or outdoor service in PA6. PA6-CF absorbs 2.48% water at 70% RH and loses roughly half its tensile strength saturated. For damp environments, PA12-CF or COPA are the correct grades.
Snap-fits and living hinges. At 1.8% elongation, carbon reinforcement kills flex life. MJF PA 11 Gen2 is the nylon for clips that see repeat assembly.
Fine detail and smooth surfaces. FDM shows layer lines and cannot resolve the fine features SLA handles comfortably.
Watertight parts straight off the machine. FDM has porosity between layers. Sealing, or a switch to MJF, is the route if the part has to hold fluid.
High volumes. Past the tooling break-even, moulding wins on unit cost.
Get a price on your part
Send the CAD and the duty cycle — loads, temperatures, fluids, quantity — through the instant quote for pricing on up to 100,000 parts with a free design-for-additive review, or talk to an engineer on 024 77360 144.
Frequently asked questions
How strong are carbon fibre FDM parts?
PA6-CF reaches 109 MPa tensile strength with an 8,636 MPa modulus (ISO 527) and a 215 °C heat deflection temperature — strong enough to replace machined aluminium where stiffness rather than absolute yield strength is the requirement. The honest caveat is anisotropy: 109 MPa in the print plane against 71 MPa through-layer, so orientation is part of the design.
What is the difference between industrial and desktop FDM?
Materials and process control. Desktop machines run commodity filament in open frames and struggle with layer adhesion and thermal stability. Industrial FDM runs engineering polymers in heated chambers with controlled extrusion and documented parameters under a quality system — which is what makes the hundredth part match the first.
Can FDM parts handle high temperatures?
Up to a point, and the point matters. PA6-CF holds a 215 °C heat deflection temperature, and 205 °C even at 1.8 MPa under load. PPA-CF handles harsher duty cycles again. Beyond that, or close-coupled to exhaust heat, no polymer is the right answer. Send the duty cycle rather than a peak number — heat soak with no airflow is a very different case from the same temperature with cooling.
Is FDM cheaper than CNC machining?
For complex geometry, usually — machining prices on material removed and time in the machine, while FDM gives you complexity at no extra cost. For simple prismatic parts, machining is often cheaper. The comparison is worth running per part rather than assuming either way.
What is the largest part you can print in FDM?
500 × 500 × 900 mm in a single piece, with the exception of PPA-CF which runs in a reduced envelope of 340 × 320 × 340 mm. Beyond that a part gets split — deliberately, where the split does least harm, rather than wherever the build volume runs out.
Does carbon fibre nylon absorb moisture?
PA6-based grades do — PA6-CF takes up 2.48% water at 70% RH and loses roughly half its tensile strength and about two thirds of its stiffness when saturated. That makes it a dry-service grade. For humid or outdoor parts, PA12-CF or PA6/12-CF COPA are far more stable, which is exactly the kind of thing worth settling before a part goes into service rather than after.
Can FDM replace metal parts?
In the right applications, yes — particularly brackets, housings, ducting, guards and fixtures where stiffness-to-weight matters more than ultimate strength. PA6-CF sits at 1.17 g/cm³, less than half the density of aluminium for the load path. Where the part is safety-critical, heavily loaded, or running beyond polymer temperature limits, it should stay metal, and we will say so.
